3. Plackett Burman
This type of experiment is suitable for efficiently and economically studying the effect of factors on the variable of interest.
Example:
magine that we have 7 factors capable of impacting the response variable and we want to analyze which of them has the greatest impact. We then need to plan an experiment that takes into account the combinations of these factors and, for this, we use the Plackett Burman Experiment Design.

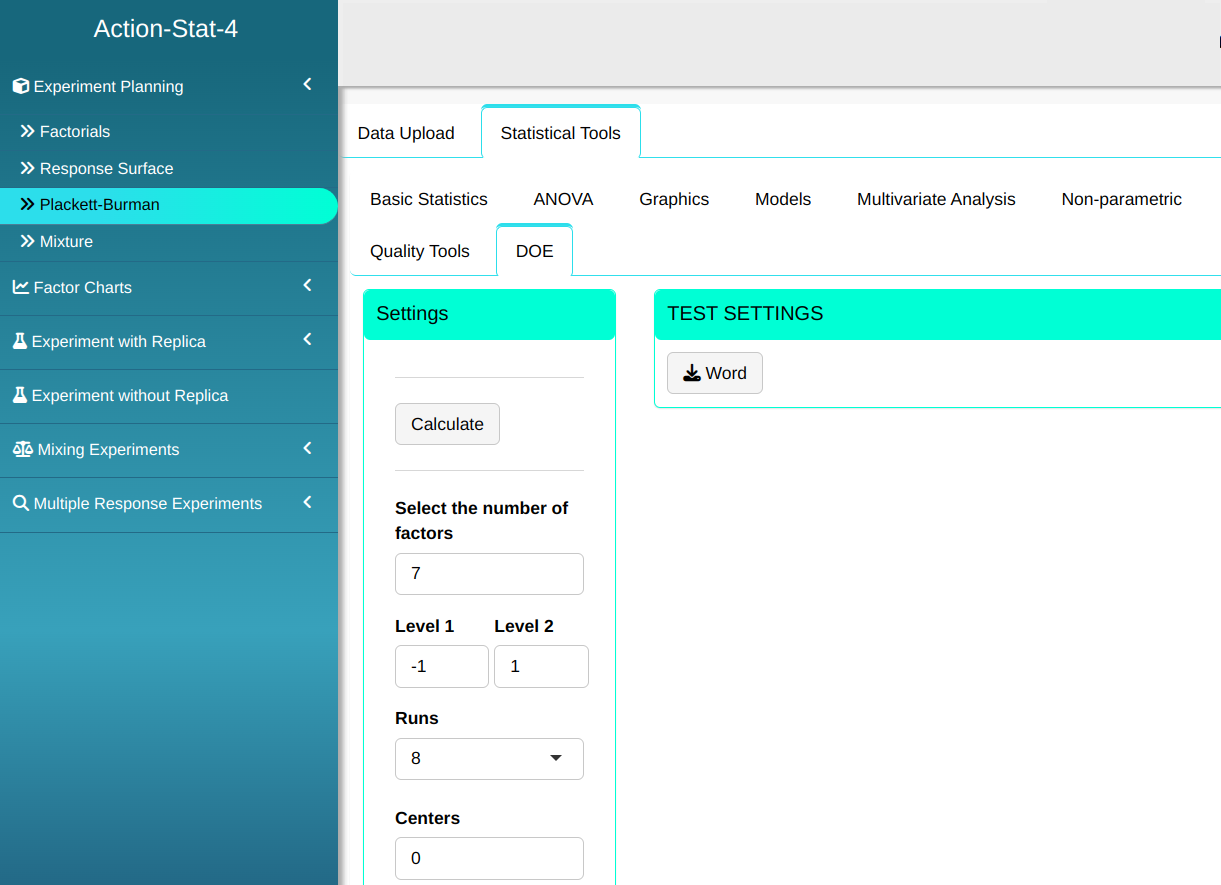

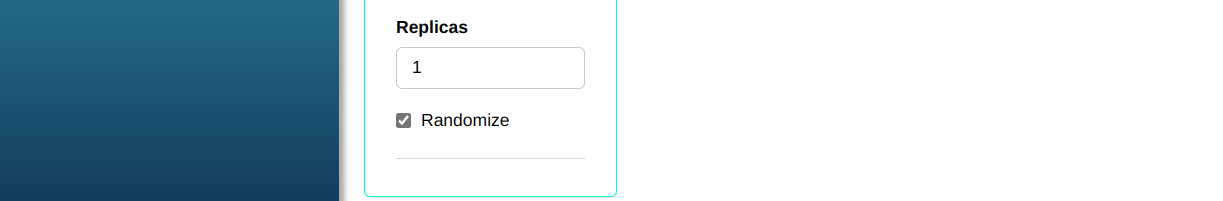

To carry out the planning of the Plackett Burman experiment, we will perform the following steps:

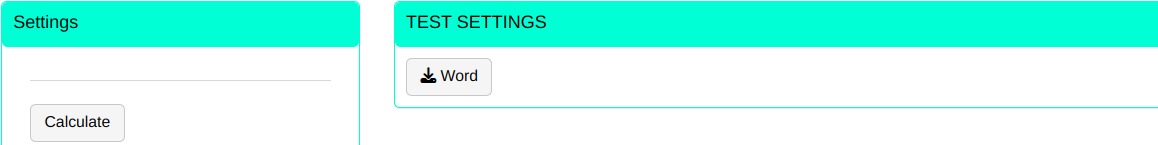

By clicking on Calculate we obtain the results And download the results in Word format.
The results are:
Plackett Burman
| Order | Runs | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| 1 | 3 | -1 | -1 | 1 | 1 | 1 | -1 | 1 |
| 2 | 4 | 1 | -1 | -1 | 1 | 1 | 1 | -1 |
| 3 | 6 | 1 | -1 | 1 | -1 | -1 | 1 | 1 |
| 4 | 8 | -1 | -1 | -1 | -1 | -1 | -1 | -1 |
| 5 | 5 | -1 | 1 | -1 | -1 | 1 | 1 | 1 |
| 6 | 1 | 1 | 1 | 1 | -1 | 1 | -1 | -1 |
| 7 | 2 | -1 | 1 | 1 | 1 | -1 | 1 | -1 |
| 8 | 7 | 1 | 1 | -1 | 1 | -1 | -1 | 1 |
